Led Screens For Outdoor Concerts Dj Booth Led With P10 320mm*160mm
| LED Module Parameters |
 | Pixel Pitch | 10mm |
| Pixel Density | 10000dots/m² |
| Drive Duty | 1/2scan |
| Module Size | 320mm x 160mm |
| Module Resolution | 32dots x 16dots |
| Module Weight | 0.65kg |

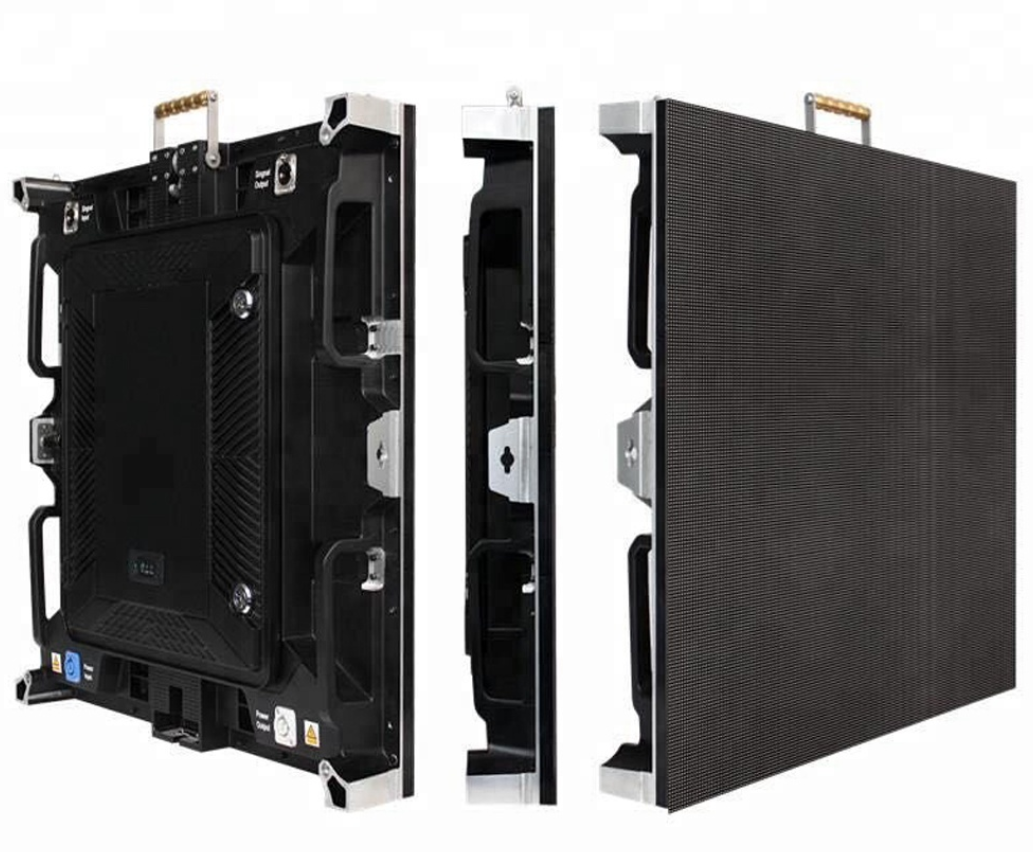

| LED Cabinet Parameters |
 | Cabinet Size | 960mm x 960mm |
| Cabinet Resolution | 128dots x 128dots |
| Module Qty | 4pcs |
| Physical Resolution | 16,384dots |
| Cabinet Weight | 15kg |
| Cabinet Material | Die-casting Aluminum |
| LED Screen Parameters |
 | Best Viewing Distance | 10m - 70m |
| Best Viewing Angle | H:120°, V:120° |
| Refresh | 1200Hz |
| White balance brightness | 6800cd |
| Max. Power Consumption | 850W/m² |
| Waterproof | IP65 |
| Lifespan | 100,000 Hours |
| Maintaining Type | Front & Rear optional |
Packaging&Shipping:
Packaging Detail:100cm*112cm*71cm G.W.:165KG
Or as customer's request.
Shipping Detail: UPS/Fedex/TNT/DHL, By air, By sea
FAQ:
Q1,How to arrange payment?
Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable
Q2,What is our warranty?
Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well
Q3,How to be our distributor?
To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time
Q4, How to maintence led screen?
In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules
Q5,How to select led type?
In usually,
For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25
For outdoor stage will be select P4.81 P6.25 P6 P8 P10
For fixed installed led screen, can select P3 P4 P5 P6 P7.62 P10
For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12
if directly to sun,can select outdoor SMD P8, DIP P10
For big size led screen can select DIP P10 P12 P16 or P20
Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6 P8 P10,there are good for high resolution led screen
